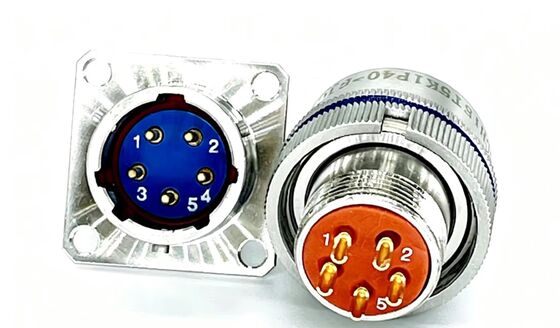

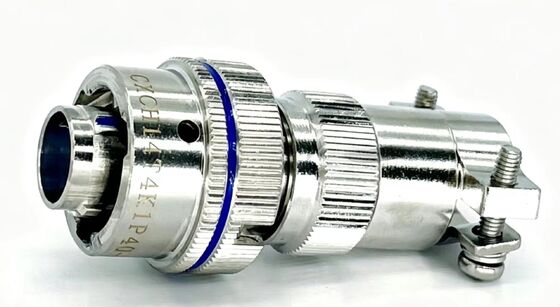

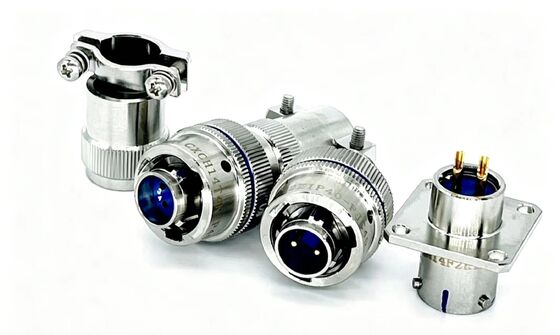

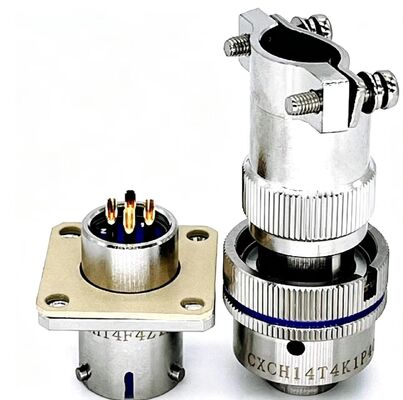

Electrical connectors XCH18T4K1P1 XCH18T4Z1P40 XCH18F4K1D1 solder type plugs and sockets

Product Description:

The 6FX2003 Servo Motor Connectors are precision-engineered components designed to deliver reliable and efficient connections for a wide range of servo motor applications. Constructed from a combination of high-quality metal and durable plastic materials, these connectors ensure excellent conductivity, mechanical strength, and resistance to environmental factors. Their robust design makes them ideal for use with High Torque DC Servo Motors, Brushless Servo Motors, and other sophisticated servo systems where performance and reliability are paramount.

Available in multiple gender configurations including 8-pin, 4-pin, 6-pin, 12-pin, and 17-pin options, the 6FX2003 connectors provide versatile connectivity solutions tailored to different wiring requirements. This flexibility allows engineers and technicians to select the appropriate connector type that best fits their specific servo motor setup, facilitating seamless integration into various control systems and machinery. The connectors accommodate wire gauges ranging from 18 to 24 AWG or even larger, with diameters between 3 to 12 millimeters, ensuring compatibility with a broad spectrum of servo motor wiring needs.

One of the standout features of the 6FX2003 connectors is their impressive operating temperature range, from -40℃ to +105℃. This wide thermal tolerance guarantees stable performance in harsh environments, whether in industrial automation, robotics, or other demanding applications involving Brushless Servo Motors and High Torque DC Servo Motors. The connectors maintain their electrical and mechanical integrity under fluctuating temperatures, minimizing the risk of connection failures and downtime.

Designed to meet the rigorous demands of modern servo motor technology, the 6FX2003 series supports efficient power transmission and signal integrity, which are critical for the precise control and responsiveness required in brushless servo systems. Their high-quality construction reduces electrical resistance and enhances durability, contributing to longer service life and consistent operation of the connected servo motors.

In addition to their functional advantages, these servo motor connectors are user-friendly, featuring easy-to-install designs that simplify assembly and maintenance. The secure locking mechanisms prevent accidental disconnections, ensuring safety and reliability during operation. This makes the 6FX2003 connectors an excellent choice for both original equipment manufacturers (OEMs) and maintenance professionals working with Brushless Servo Motors and High Torque DC Servo Motors.

Overall, the 6FX2003 Servo Motor Connectors stand out as a robust, adaptable, and high-performance solution for electrical connections in servo motor systems. Their versatile pin configurations, compatibility with a wide range of wire gauges, and exceptional operating temperature range make them indispensable components in the field of servo motor technology. Whether used in industrial automation, robotics, or precision machinery, these connectors contribute significantly to the efficient and reliable operation of High Torque DC Servo Motors and Brushless Servo Motors alike.

Features:

• Product Name: Servo Motor Connectors
• Voltage Rating: 1000V
• Contact Plating: Silver Pin and Golded Pin
• Operating Temperature Range: -40℃ to +105℃
• Connector Type: Servo Motor
• Model Name: 6FX2003
• Compatible with AC Brushless Servo Motor systems
• Ideal for Electro Hydraulic Servo applications
• Designed for Brushless Servo Motor connectivity

Technical Parameters:

Applications:

The NO MARK 6FX2003 Servo Motor Connectors are engineered to meet the demanding requirements of various servo motor applications. Designed and manufactured in China, these connectors come with CE and ISO9001 certifications, ensuring high quality and reliability. With a robust operating temperature range from -40℃ to +105℃, they are suitable for extreme environments, making them ideal for industrial automation systems and precision machinery.

These connectors support multiple gender configurations including 8pin, 4PIN, 6PIN, 12PIN, and 17PIN options, providing versatility in connectivity for different servo motor systems. Whether you are working with Brushless Servo Motors, DC Servo Motor Drives, or AC Servo Motor Drivers, the 6FX2003 connectors offer secure and stable connections to optimize motor performance. The connectors feature both panel mount and cable mount options, allowing for flexible installation depending on the application scenario.

Termination types include crimp and solder, catering to various assembly preferences and ensuring a durable electrical connection. The product packaging is done in carton boxes to protect the connectors during transit, and with a supply ability of 1000 pieces per day, it supports large-scale production needs. Minimum order quantity is 100 pieces, making it accessible for both small and large orders.

The NO MARK 6FX2003 connectors are widely used in industrial robots, CNC machinery, conveyor systems, and automation equipment where precise and reliable servo motor connections are critical. Their compatibility with Brushless Servo Motors and both DC and AC Servo Motor Drives makes them a preferred choice for engineers and technicians aiming for high-performance and long-lasting solutions.

With a fast delivery time of 1-3 working days and flexible payment terms including T/T and PayPal, procurement is convenient and efficient. These connectors ensure seamless integration in servo motor control systems, contributing to enhanced operational efficiency and reduced downtime in various industrial applications.

Customization:

Our 6FX2003 Servo Motor Connectors are designed to provide exceptional performance for a wide range of applications including DC Servo Motor Drive, Brushless Servo Motor, and AC Servo Drive systems. Manufactured in China under stringent quality controls, these connectors come with CE and ISO9001 certifications ensuring reliability and compliance with international standards.

We offer customization services tailored to your specific needs, with a minimum order quantity of 100 units. The connectors feature silver and gold-plated contact pins to guarantee excellent conductivity and durability. You can choose between crimp or solder termination types, as well as panel mount or cable mount options to best fit your installation requirements.

Our 6FX2003 model supports insulation resistance configurations for both 6-pin and 7-pin setups, making it versatile for various servo motor drive applications. Each order is carefully packaged in a sturdy carton box to ensure safe delivery.

With a supply ability of 1000 pieces per day and a delivery time of 1-3 working days, we are committed to meeting your project timelines. Payment terms are flexible, accepting T/T and PayPal for your convenience.

Choose our NO MARK brand 6FX2003 Servo Motor Connectors for your next project to benefit from high-quality, customizable solutions designed specifically for DC Servo Motor Drive, Brushless Servo Motor, and AC Servo Drive applications.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and high-performance connections for servo motor applications. For technical support, we offer comprehensive assistance to ensure optimal integration and operation of our connectors in your systems.

Our support services include detailed product documentation, installation guidelines, troubleshooting tips, and compatibility information to help you select the right connector for your servo motor setup. Our technical team is equipped to assist with custom configurations and answer any technical queries related to electrical specifications, mechanical fit, and environmental ratings.

We also provide maintenance advice to extend the lifespan of your servo motor connectors and minimize downtime. In case of product issues, our service includes diagnostics and repair or replacement options under warranty terms.

For enhanced support, we offer training sessions and technical workshops to help your team understand the best practices for using and maintaining our servo motor connectors effectively.
